Knutsen Hawaiian Guitar

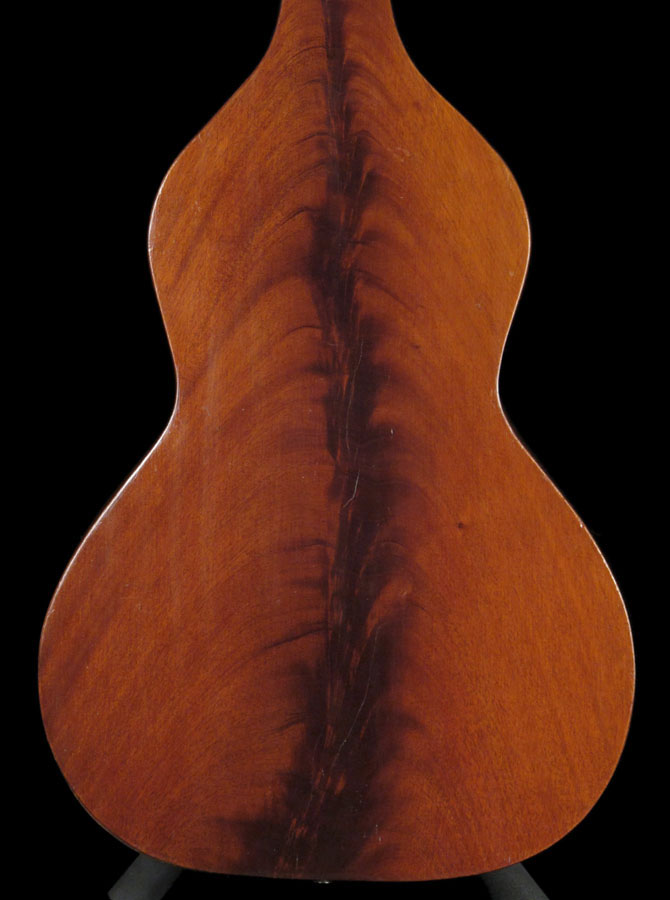

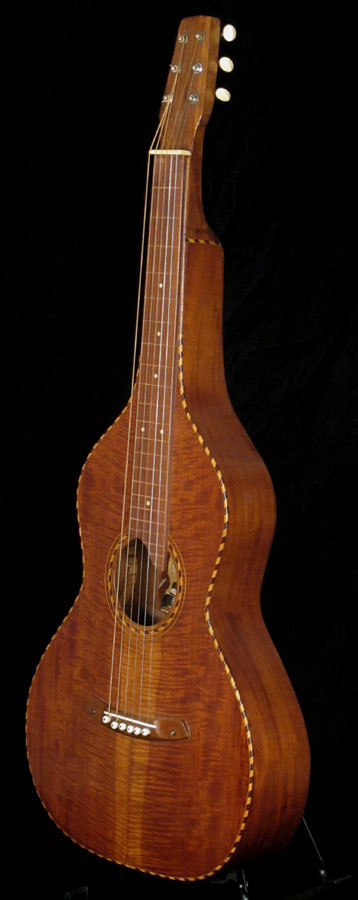

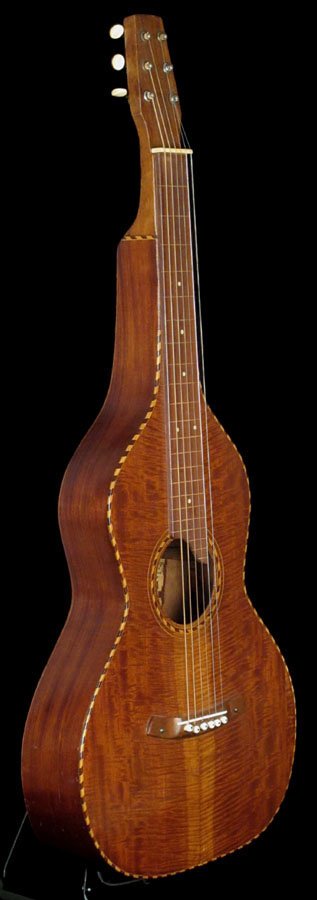

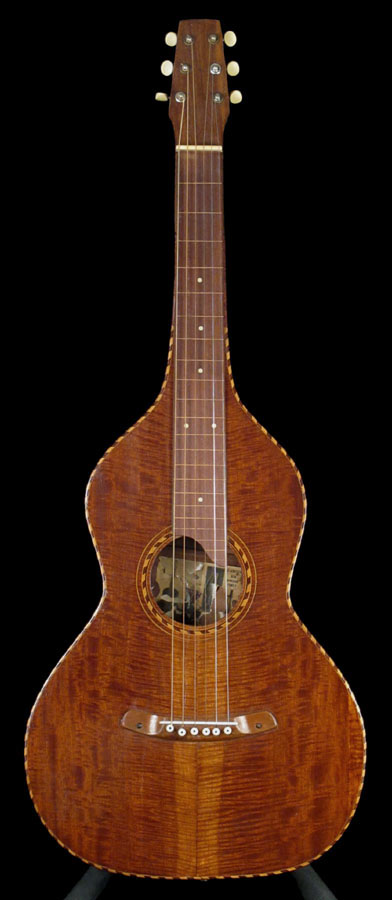

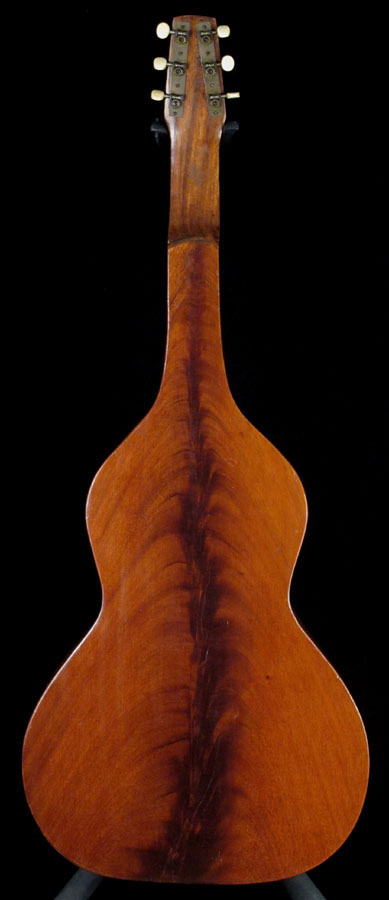

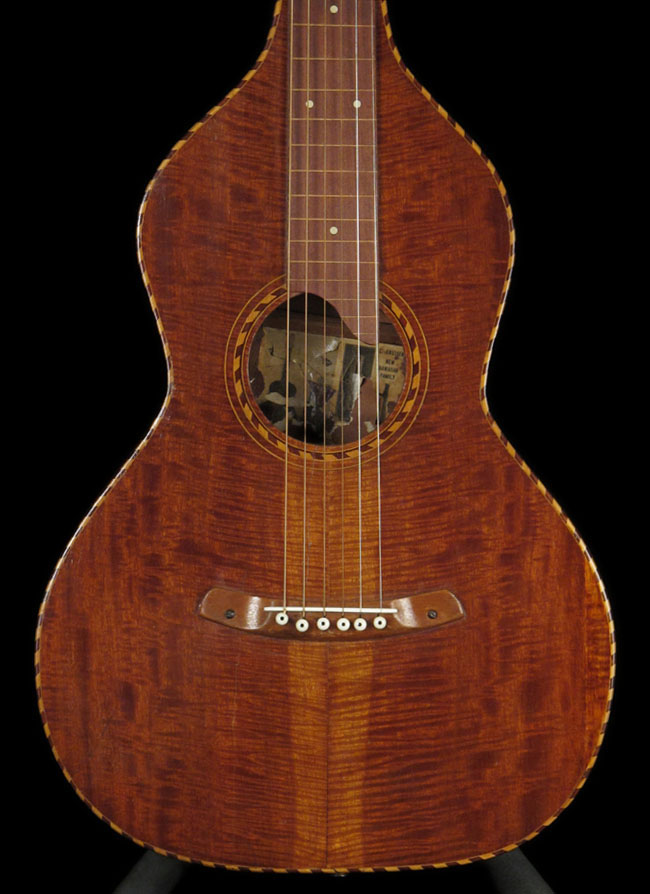

This instrument has a gorgeous flame top - but is it koa or mahogany...? The insane one-piece back with "animal mane" stripe down the center similarly defies identification (mahogany or koa?), as do the sides. Knutsen's red-colored shellac has been over-sprayed top and back (after a small repair to top at lower treble bout). An I-Beam pickup and jack have been installed, tone (acoustic) is outstanding.
Click on picture to
enlarge
(left image copyright Ben Elder, all
others copyright Gregg Miner)
Knutsen Archives Inventory Number |
HW21 |
|
Category |
Hollow Neck Hawaiian Guitars |
|
Body Style |
"Weissenborn-shaped" |
|
Current or last known owner |
Bill Asher > Bernunzio Vintage Inst > John O'Kennedy |
|
Year (approx) |
1914-1920s |
|
Label |
full "New Hawaiian Family," white | |
Label Code | LA1 | |
Courses / Strings |
6 strings |
|
Frets |
inlaid wood |
|
Scale length | 24-7/8" | |
Neck Joint | hollow, square, taper begins between the second and third fret | |
Woods |
Top |
flame koa or mahogany |
Back & Sides |
1-piece koa or mahogany | |
Neck |
solid koa |
|
Fingerboard |
dyed ? |
|
Bridge |
mahogany |
|
Headstock veneer |
none |
|
Binding, trim |
Top |
rope |
Back |
none |
|
Fingerboard |
none |
|
Headstock(s) |
none |
|
Soundhole |
rope |
|
Inlay |
celluloid dot fret markers |
|
Pickguard |
none | |
Dimensions | Upper Bout | 9-1/2" |
Lower Bout | 14-7/8" | |
Body at endpin | 3-1/2" | |
Comments |
Small repair to top at lower treble bout, over-sprayed |
