Organology

Harp Guitar Form 2c
by Gregg Miner

Additional Neck harp string attachment, Headstocks are a single-formed piece.
The appearance is not one of "joined" headstocks - instead, a single custom shape or structure connects the two necks.

NOTE TO RESEARCHERS:  Please understand that many of the instruments on this page were not originally referred to as "harp guitars."
To understand why they are classified as such today, it is imperative that you first thoroughly read and comprehend the site author's thesis.

See bottom of page for image copyright information

            American

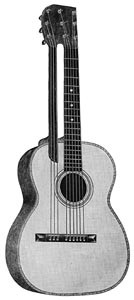

Almcrantz, 1895, Pat #542,788 Bay State, c.1894 from Washburn catalog, c.1897 Unknown, c.1899 Unknown


Bruno & Sons, c.1912
Note that this has 12 strings on the neck, with 4 single basses - so it is a 10-course, 16-string instrument.
Additional images 1
Additional images 2

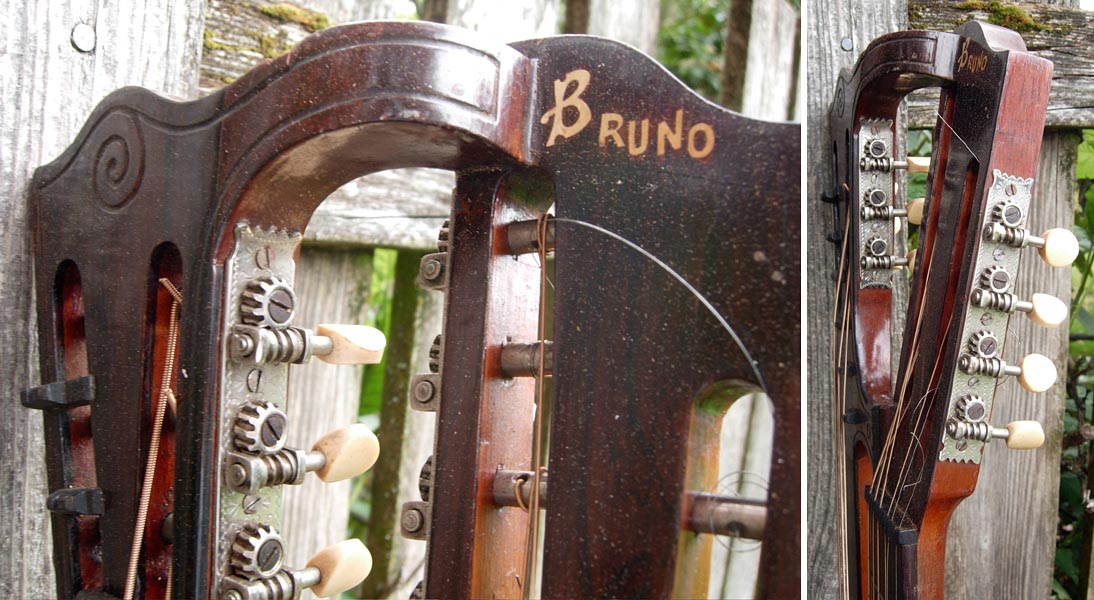

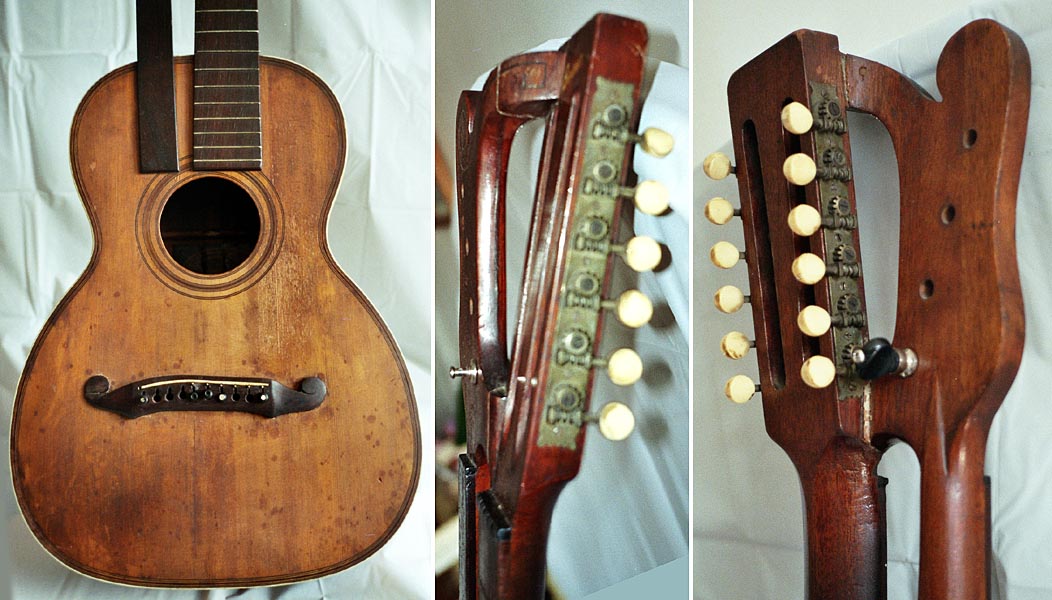

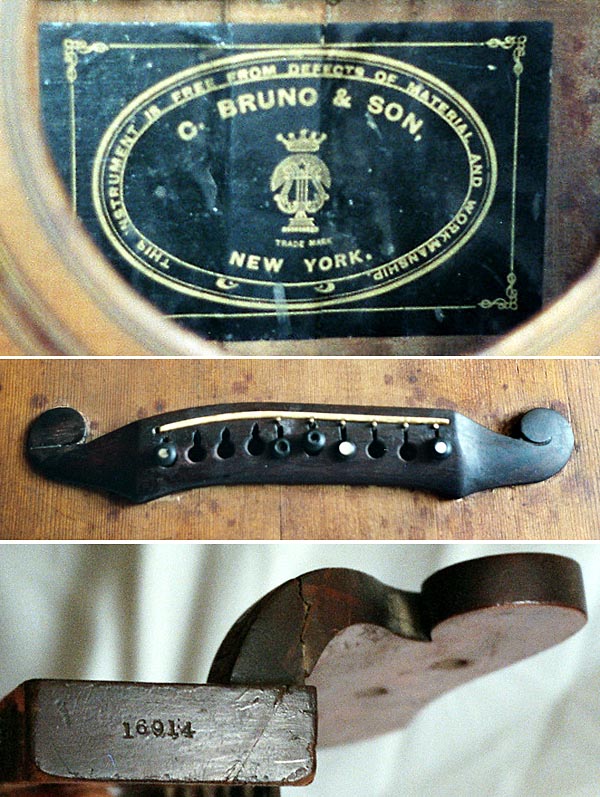

Bruno
This unusual specimen is also a 12-course instrument with 16 strings, but with a twist!  It has 6 single basses and the high two courses on the neck are not doubled.  Note the carving and tuner array.  The 2 tailpieces are add-ons.
Additional images 1
Additional images 2

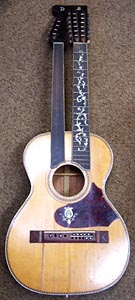

"The Tosi Music Company, 63 Hanover Street, Boston, Mass"
(another unique 12-strings on the neck)

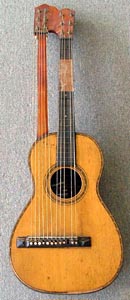

Unknown Unknown Hartman Bros. & Reinhard, New York, c.1900

Jenkins, 1902 (Harwood)
8 sub-bass

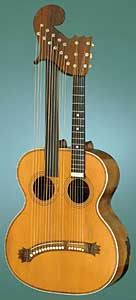

"Harwood," c.1900
12 sub-bass
"Harwood," c.1900
12 sub-bass

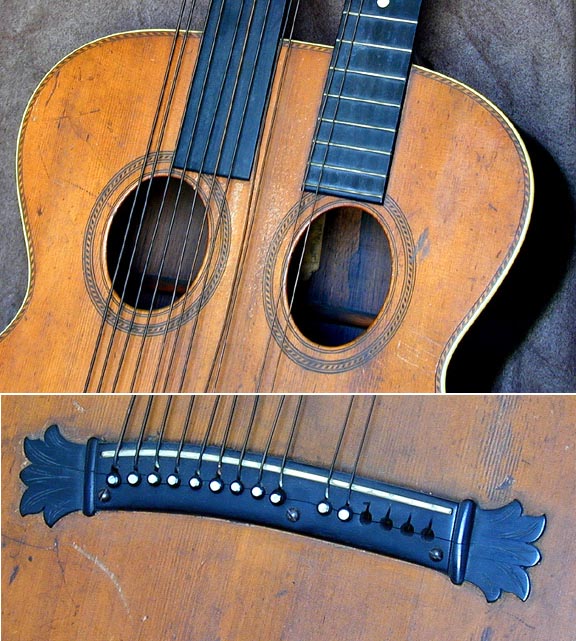

"Harwood," c.1900
9 sub-bass, oval holes
Additional images
"Harwood," c.1900
6 sub-bass
Harwood? c.1900
12 sub-bass
See also Harwood Special Feature

Gould, 1911

More great photos at Frets.com

"Stella," c.1920 "Sovereign," c.1920 Oscar Schmidt, c.1915 House of Stathopoulo, 1910
Additional images
More information at The Vintage Collection at Epiphone.com

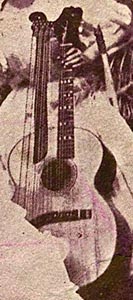

Bohmann, c.1892-1895 Bohmann, c.1895 Probably Bohmann, 1890's
See The Harp Guitars of Joseph Bohmann

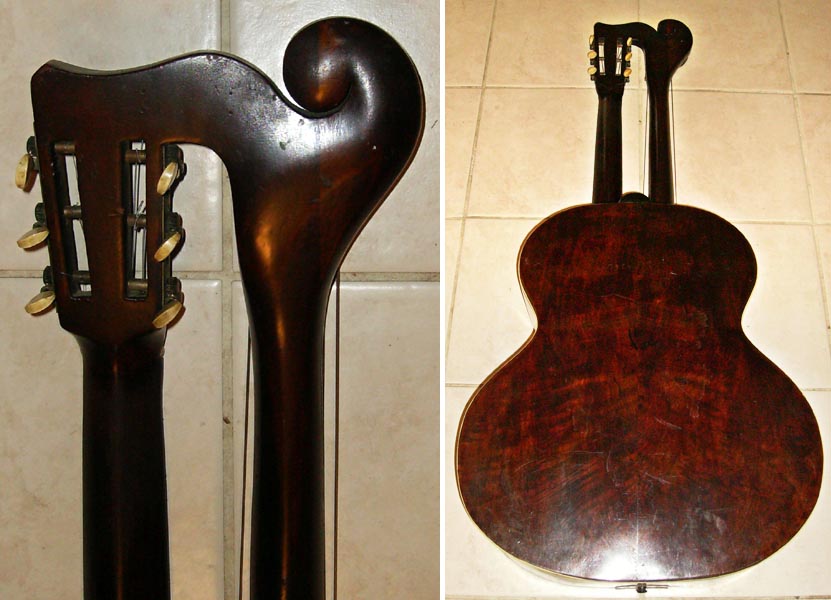

Almcrantz
Additional images
1  2
Weymann Gindlesperger (att) Shutt, c.1912

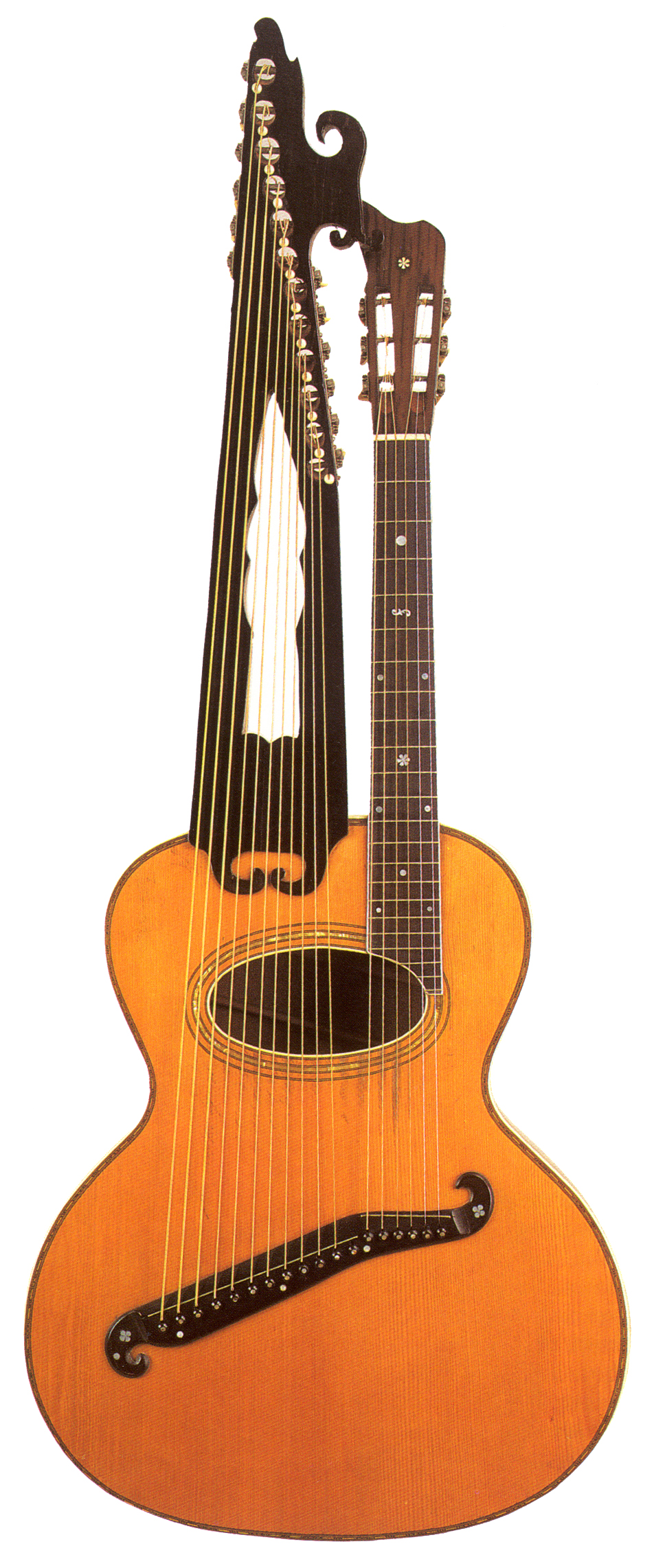

Larson Larson (per Hartman) Truax, 1907 (Larson-made? Hartman says no, Meulle-Stef and I say likely) Stahl, 1912

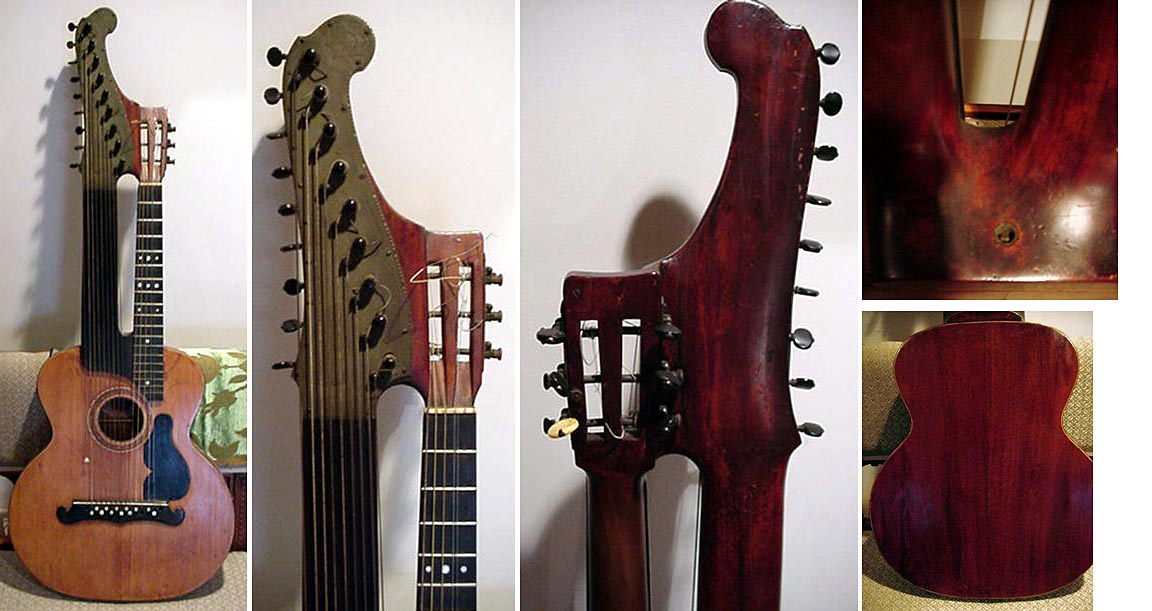

Tieri, c.1910 Tieri ? (restored by Tieri) Unknown

(believed to be Italian-American)

Unknown

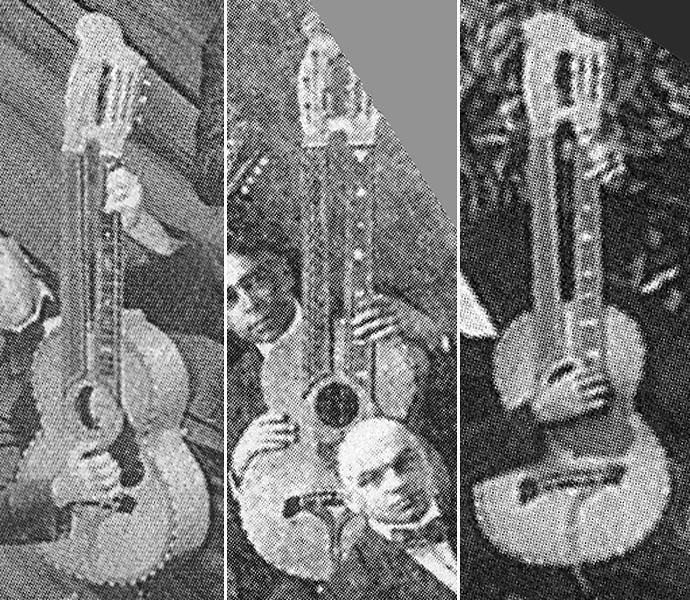

Clearly the same maker, played by Salvatore de Natale from 1920-1938.
Courtesy of Sheri Mignano Crawford, "Mandolins, Like Salami"


Iucci, New York,
c. 1930

Additional images

More great photos at Frets.com

Unknown

(Country of origin unknown)

Adams, Dwight, IL, c.1900 Unknown

Unknown

(American Mandolin Club, c.1900

Unknown

(Minneapolis Mandolin Club, 1897)

Unknown

(Mystic Mandolin Club)

Unknown Henry Tappert, 1900

The label reads:
Made By
Henry G. Tabbert
Maker of
Mandolins and Guitars
Dec. 31, 1900
Cleveland, Ohio

Unknown

...but lookat tapered width bridge and offset soundhole-with the same 12 sub-bass strings, this is almost certainly another Tappert!

     Austrian / German

J.G.Stauffer?

(3+6)

Label reads:
Johann Georg Stauffer, 1852, Landstr.572

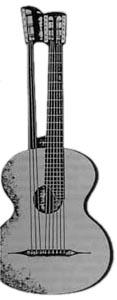

Scherzer

(3+6)

Scherzer, 1856?

(3+6)

The label appears to read "1836" though it must be "1856" - the support rod is missing also

Scherzer, 1861

(4+6)

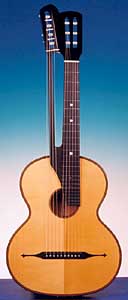

Scherzer copy by Gary Southwell

(4+6)

Scherzer

(4+6)

Scherzer

(11+6)

Additional Scherzer models below

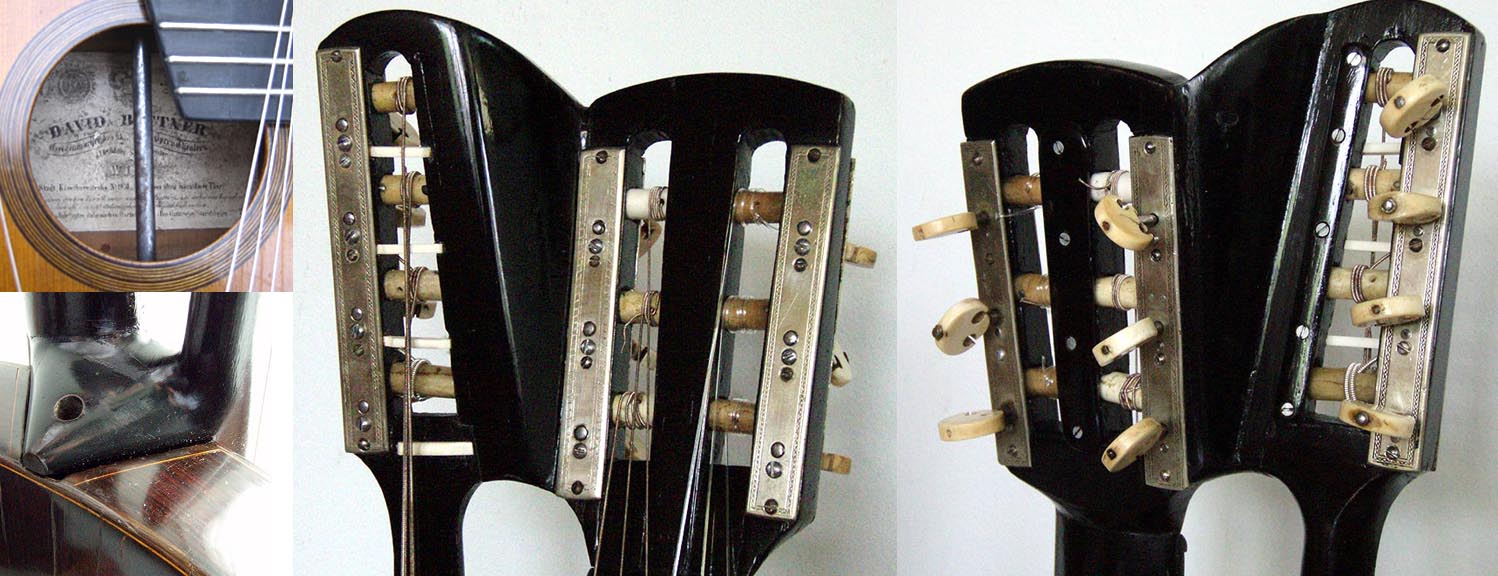

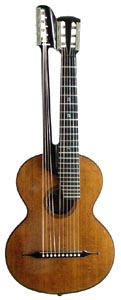

Raab Bittner, c.1860

Additional images

Arkhuzen, Moscow, late 1800s
(4+7)

Arhuzen, Moscow (spelling varies)
(4+7)
Additional images

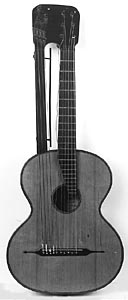

Schenk (built for Ivan Padovec), c.1841
Instrument now owned by the Croatian Institute of Music, and is displayed in the Museum of Arts and Crafts in Zagreb. (thanks to Mirko Orlic)
Unknown Unkown, c.1860
(collection Brigitte Zaczek)
Carl Hansel, 1842?, Dresden J. Schmidbauer, Regensburg

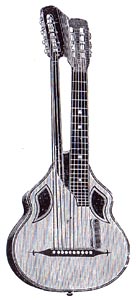

Zimmermann, Leipzig, 1899
(4+7)
Zimmermann, c.1900
(4+7)

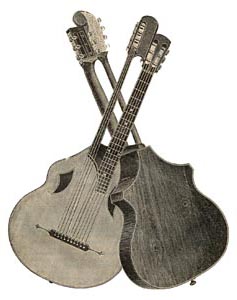

Zimmermann, St. Petersburg, c.1904
(right specimen is a Russian harp guitar: 4+7)
Eroshkin, Russia
(5+7)

Enzensperger, Bernard I,
1835

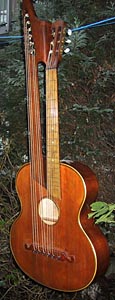

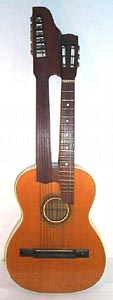

Enzensperger, Bernard II, pre-1900 J. Ch. Detmering, Hamburg

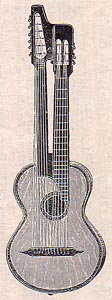

Fritz Strobel, Klingenthal, 1930s

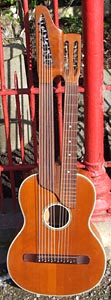

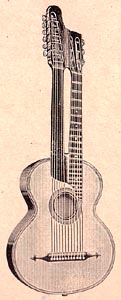

Volkmar Scherzer, Markneukirchen, 1930s Wilhelm Kruse, Markneukirchen, 1937 Schlägel, Markneukirchen, 1932 Eduard Heidegger A. Kellerman, Cologne F. X. Kerschensteiner, Regensburg,1898 C. Stöhr, St. Pölten, Austria

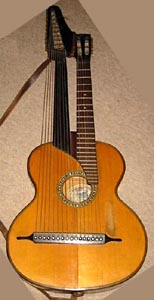

Anton Hüller
The label inside reads: "Anton Hüller Graslitz K& K Hoflieferant und Kammerlieferant Seiner K u. K Hoheit des hochw. durchlauchigsten Herrn Erzherzog Eugen v. Österreich"(Austria)

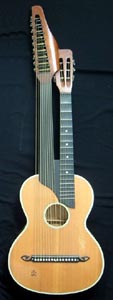

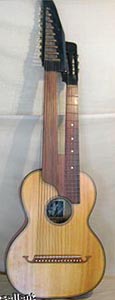

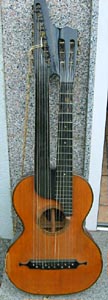

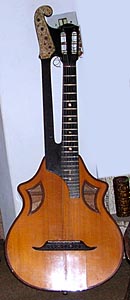

Josef Müller Konigs Walthari

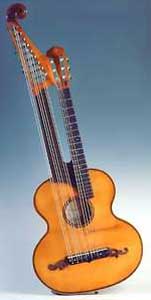

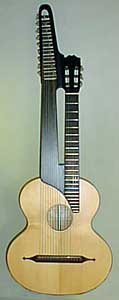

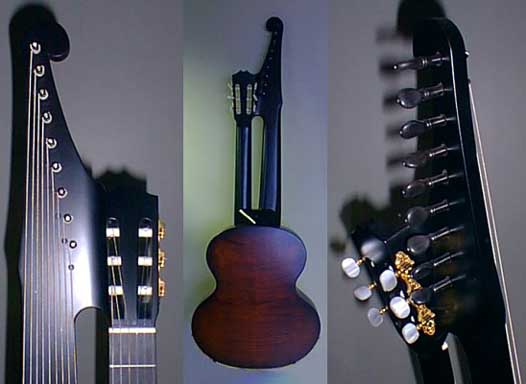

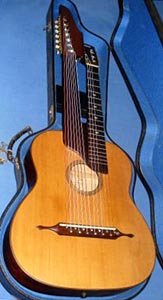

Max Amberger, München Fritz Harich, Austria, new Scherzer copy by Leo Sprenger Hopf, 1951 Friedrich Aug. Hammig, Markneukirchen

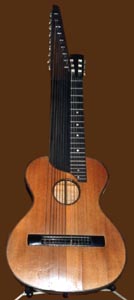

Mettal, 1934

Which Gallery to place this in?  The two necks are joined as one solid neck!

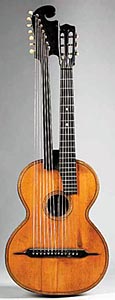

Ludwig Reisinger, Vienna
(7+6)

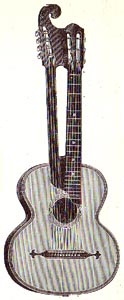

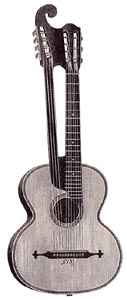

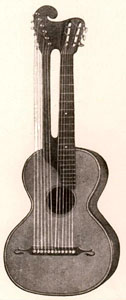

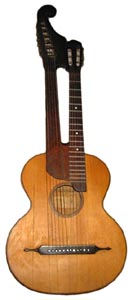

Hauser, Munich, 1913 Oscar Glaesal, Markneukirchen, c.1920 Schuster Brothers (Gebrüder Schuster) Markneukirchen, 1920s Wunderlich, Carl Anton, 1938, Siebenbrunn (near Markneukirchen) Neuner & Hornsteiner, Mittenwald Anton Volkmann Pavel Zalud, Terezín, Czechoslovakia, c.1900

Josef Stecher, Salzburg Otto Schneider, new G. A. Pfretzschner Pergold (a division of Kurt Gropp Musical Instrument Co), Leipzig, 1954
(from a rare catalog courtesy of jazzgitarren)

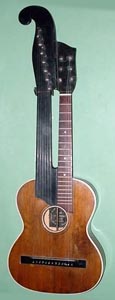

Adolf Schlesinger, Vienna

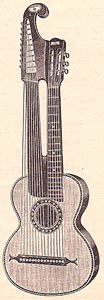

Meinel & Herold Meinel & Herold, 1940 Hauser, Munich, 1917

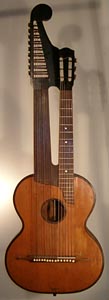

Tannhauser Wiroso-Röthner Leo Sprenger, modern M. Simon, Mittenwald Chiara

Scherzer, 1860
(5+6)

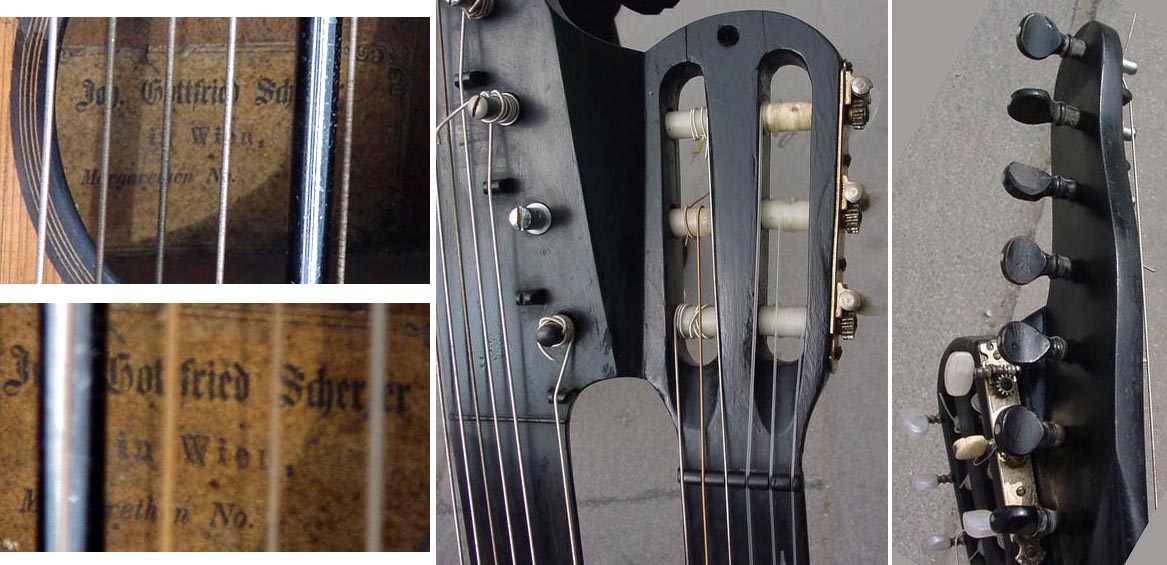

Scherzer
(7+6)

Additional images

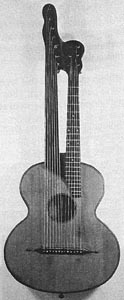

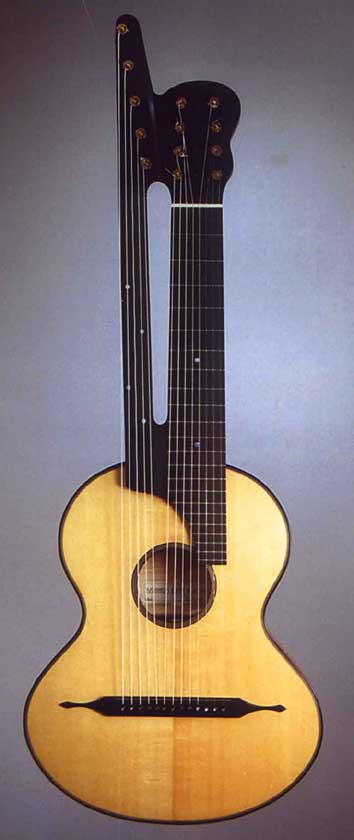

Modern Scherzer adaptation by Bernhard Kresse Josef Swosil, Vienna, 1879 (built for Anton Strommayer of the Schrammel Quartet) Geipel, Marie?

Ludwig Reisinger, Vienna
(7+6)

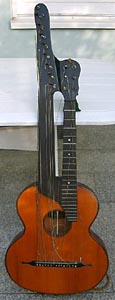

Ludwig Reisinger, Vienna
(9+6)

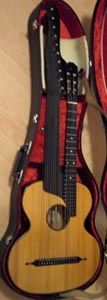

Ludwig Reisinger, Vienna
(10+6)

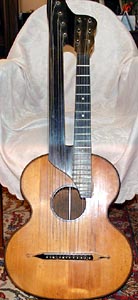

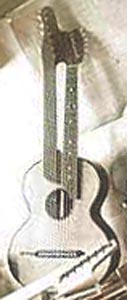

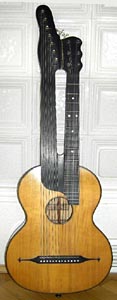

Franz Nowy, Vienna Franz Angerer, Vienna August Dworan, Vienna, 1908 A. Wolfsecker

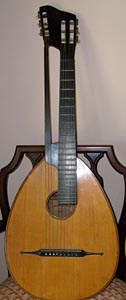

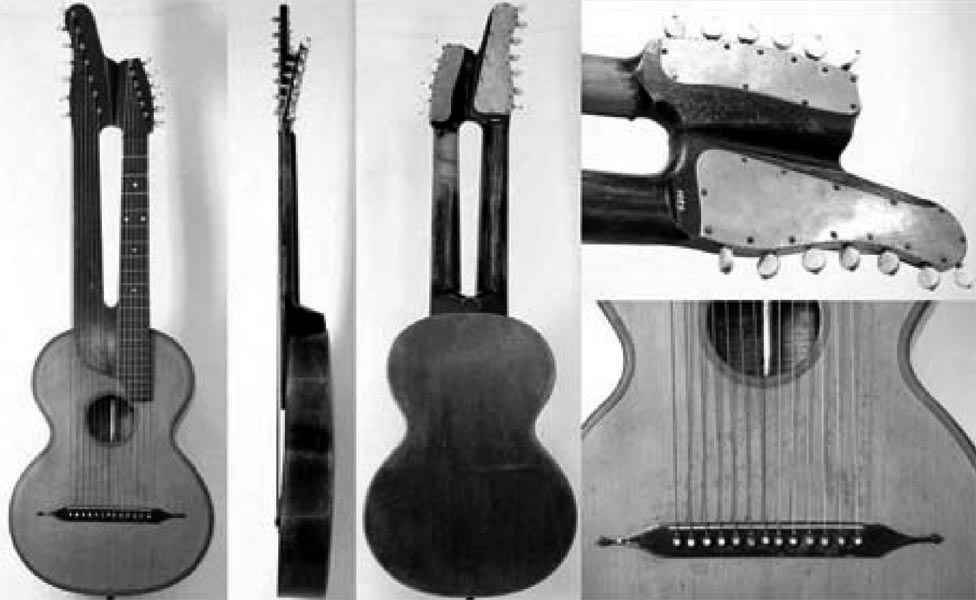

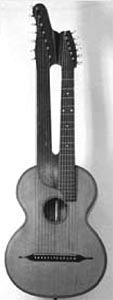

Franz Nowy J. Anton Staufer?
The instruments above offer an intriguing puzzle. The Nowy is represented in a group of several different Vienese-style models shown in photographs of unknown vintage and provenance.  The alleged Staufer - dated 182X - is in the Kunsthistorisches Museum in Vienna.  There is also a Georg Staufer terz size guitar with a second label designating restoration by Franz Nowy in the early 1900s.  Who made these two instruments with the strange 6-on-side main tuners?  Additionally, Franz Nowy appears to have been, or become more of a factory (at least until 1950) that did many instrument repairs.

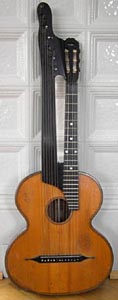

Josef Wesely, Vienna M. Nowy, Vienna, 1922 Otto Mostböck, Vienna 1925 Josef Prisner, Vienna, 19--
Additional views

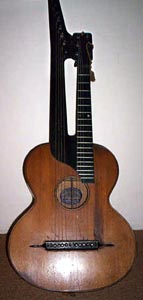

Matthäus Bauer

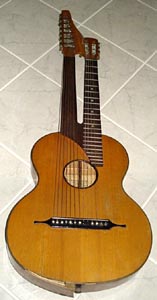

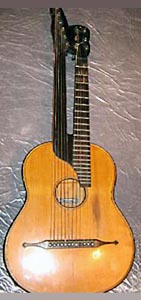

Carl Stöhr, St. Pölten, Austria

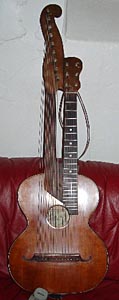

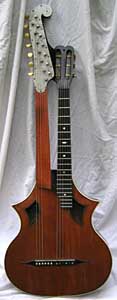

Ludwig Reisinger Hans Raab, Munich, c.1900 Franz Hilanj, Wels, Austria

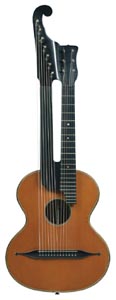

Georg Haid, Vienna, 1925 Josef Obrecht, Vienna 1936 Fritz Harich, Austria, new

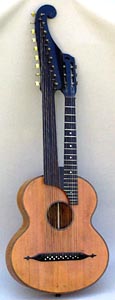

Hauser, 1924 Hauser Schuster, 1824
(birth date?)

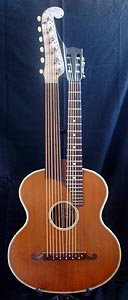

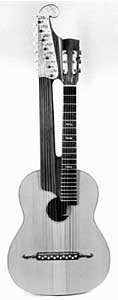

Hans Fürst Jacob, 1940 Paul Kochendörfer, Stuttgard, 1914

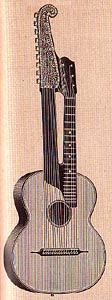

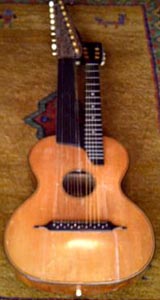

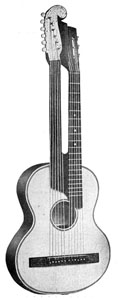

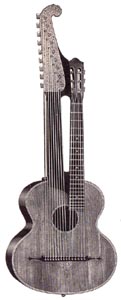

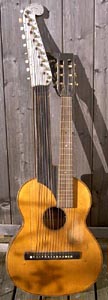

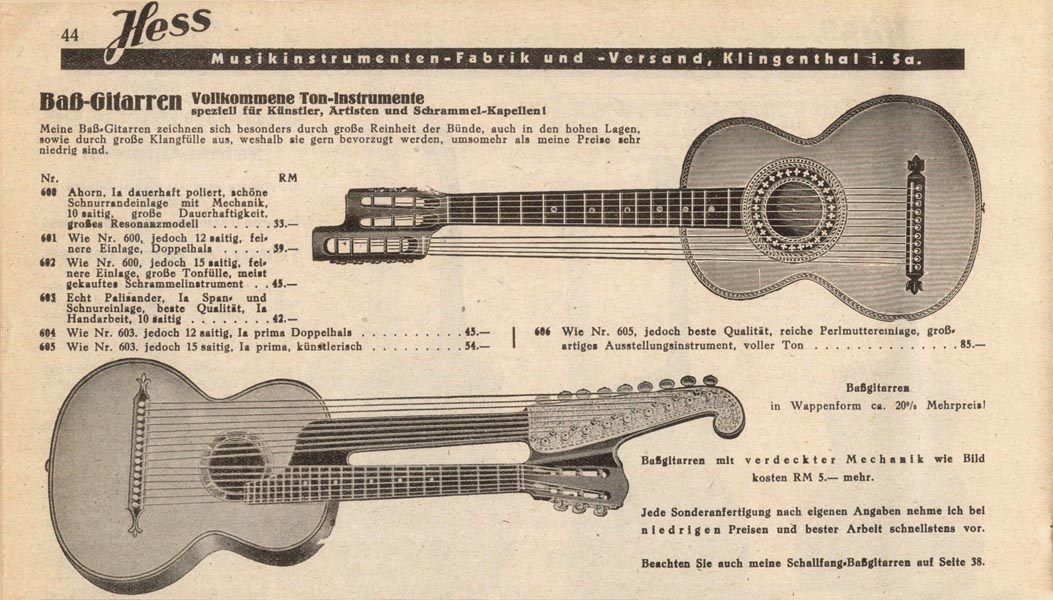

Ernest Hess Adlof Hornsteiner, Mittenwald Johannes Adler, Markneukirchen, c.1933 Schuster Brothers (Gebrüder Schuster) Markneukirchen, 1920s Brückner, Markneukirchen Otto Body, Innsbruck, c.1880

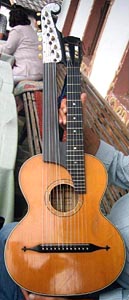

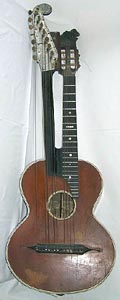

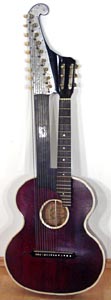

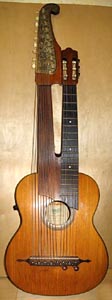

GEWA, Mittenwald, 1960 Sinfonia, Markneukirchen Musik-Union, Vienna J. Kunzmann, Munich L. Langecker, Munich  Ignaz Mettal, Schönbach (Bohemia), c.1900

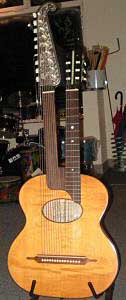

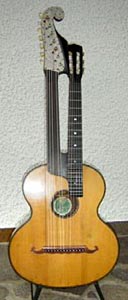

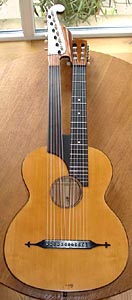

Hubert Heerbeck Adolf Meinel Josef Forg, Munich, 1930 L. Langecker, Munich F. Moser, Düsseldorf Erich Rauschmayr Helmut Buchsteiner, 1985

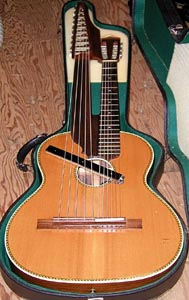

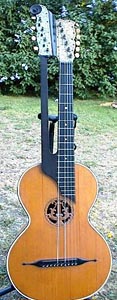

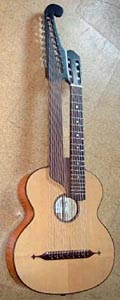

Walter Hoyer Hopf Max Gottsmann, Markneukirchen Horst Dietrich Anton Brawer, 1863 Karl Schandl, Mittenwald

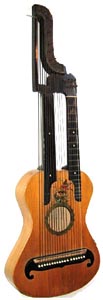

Rudolf Wohltat (or Wohlfahrt?)
Odrau, East Sudetenland (built in what became Czechoslovakia, and is now split into the Czech Republic and Slovakia)
Additional images

A. Biancato, Belgium, 1900


Label reads:
 "A. biancato

luthier

114 rue de la marlière

mouscron"

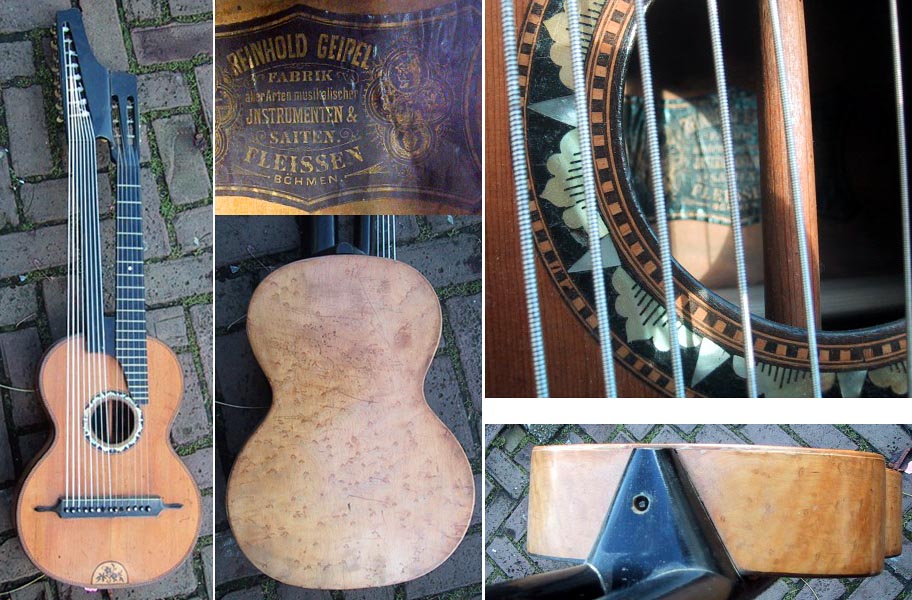

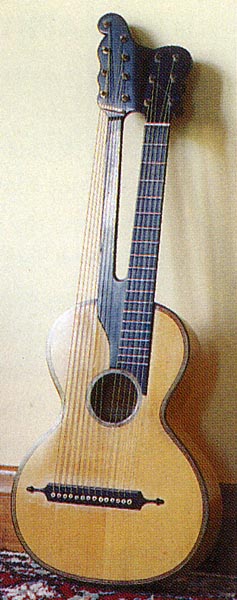

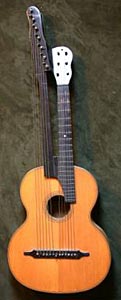

Reinhold Geipel, Fleissen, Bohemia Geipel Paesold, Bohemia, pre-1918 Paesold, Bohemia, pre-1918 Unknown, Mittenwald, c.1890

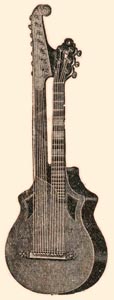

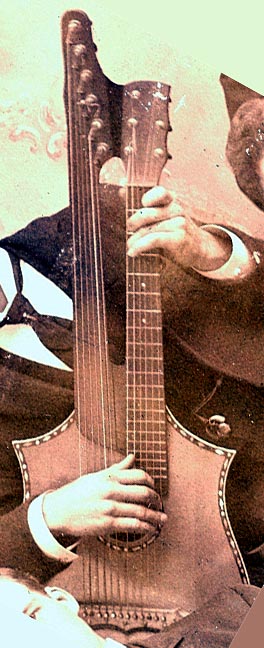

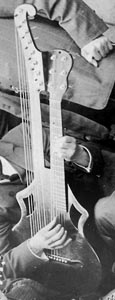

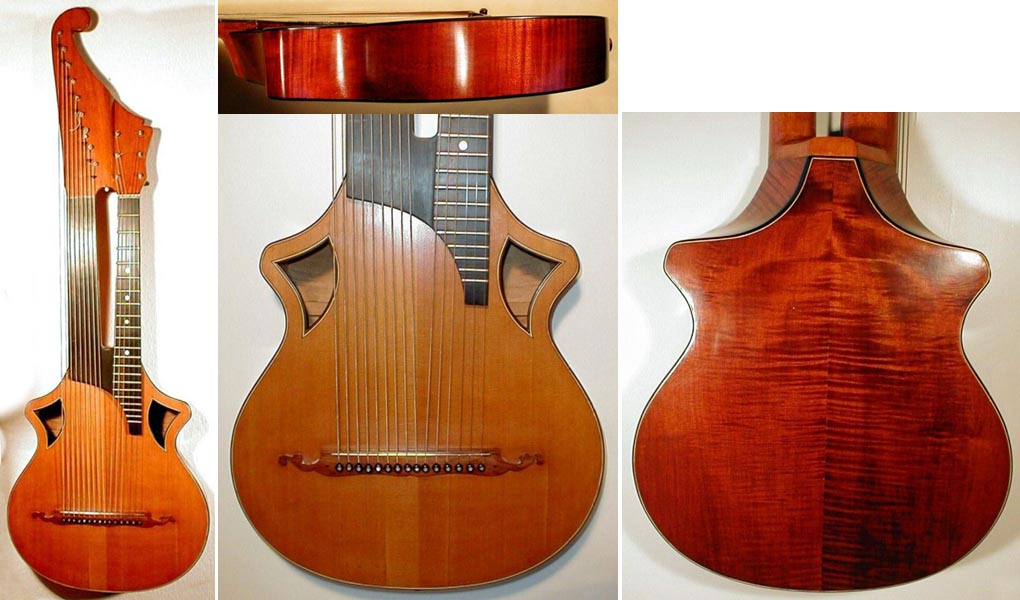

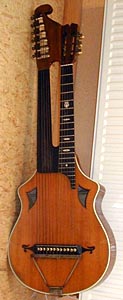

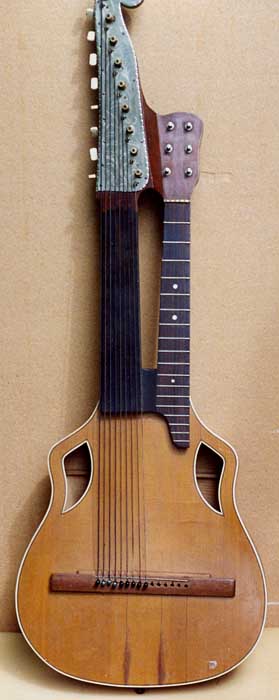

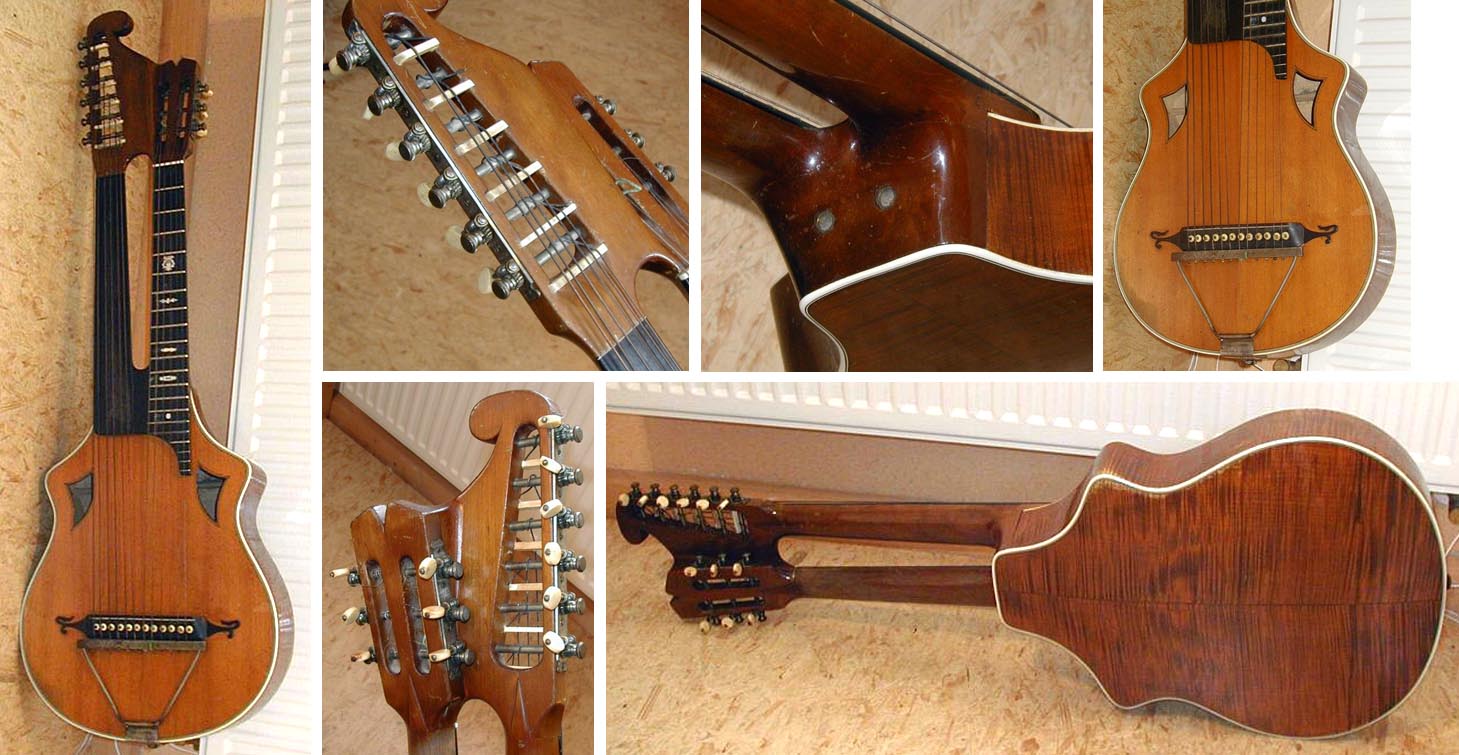

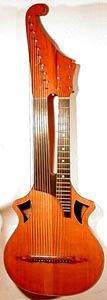

         Wappen Form (shield-shaped)

Scherzer Wurzelholz Karl Müller, 1904 Unknown Unknown

J. P. Jerusalem
courtesy of the Hartenberger World Music Collection of Historical Instruments

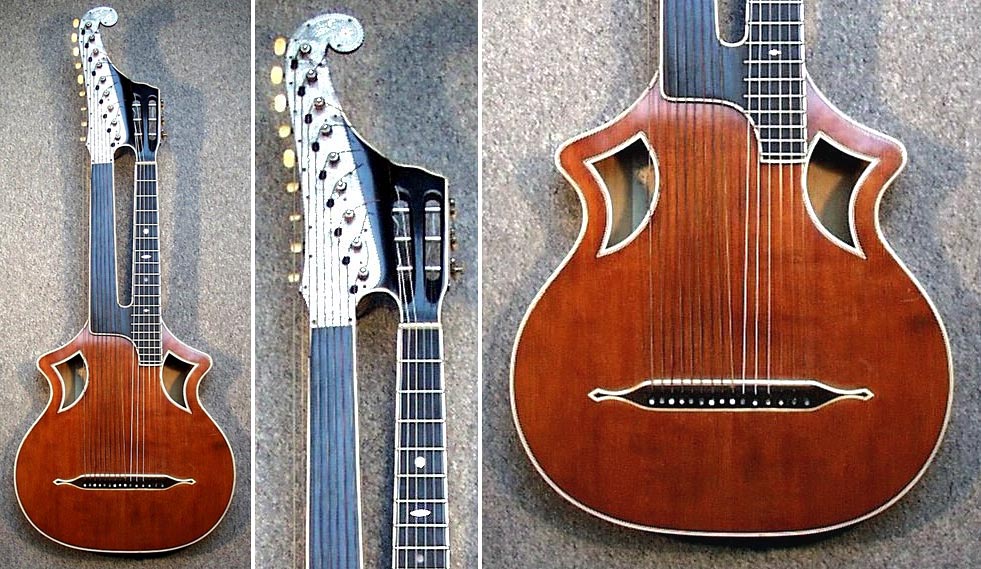

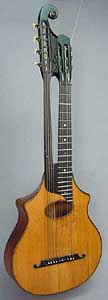

Heinrich Fuchs, Munich Halbmeyer
More great photos at Frets.com

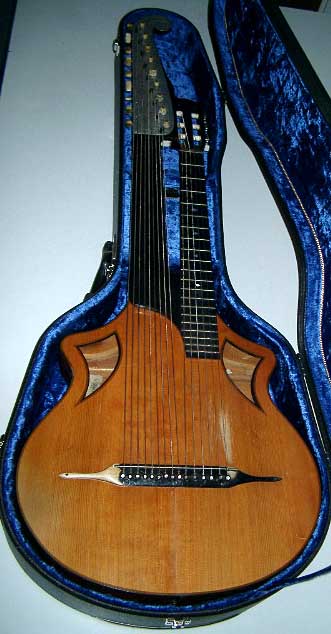

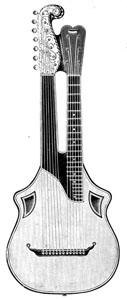

Heinrich Fuchs, Munich, 1924 Raab Raab Schuster Schuster Karl Müller Otwin (Otto Windisch), Markneukirchen, 1909

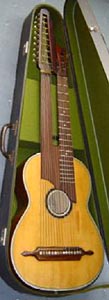

Max Amberger, Munich, c.1900

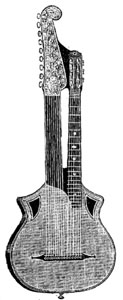

Braun & Hauser, Munich, c.1913 Hermann Hauser I, c.1909 Heinr. Moritz Schuster, Markneukirchen F. X. Kerschensteiner, Regensburg, 1935? Unknown Unknown

Zimmermann, Leipzig, 1899 Zimmermann, St. Petersburg, c.1904 Anton Bauer, Linz, Austria, c.1903

     Italian

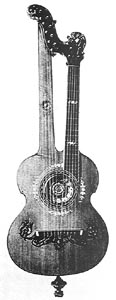

C. Candi, Genoa,  c.1910
"
Chitarra con due manici"

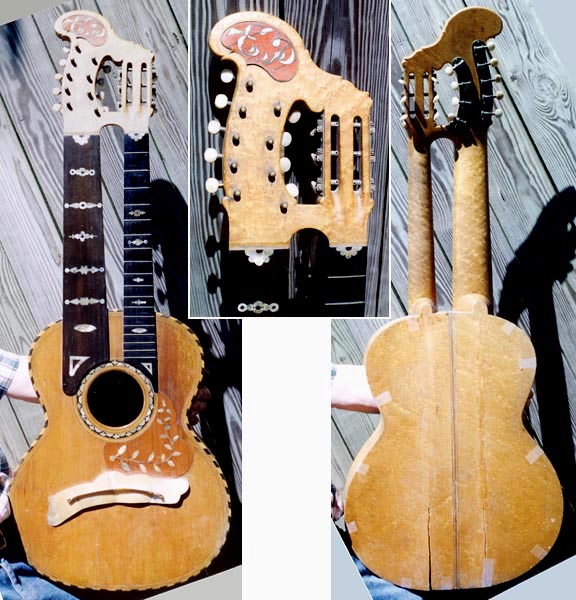

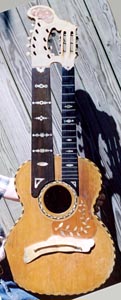

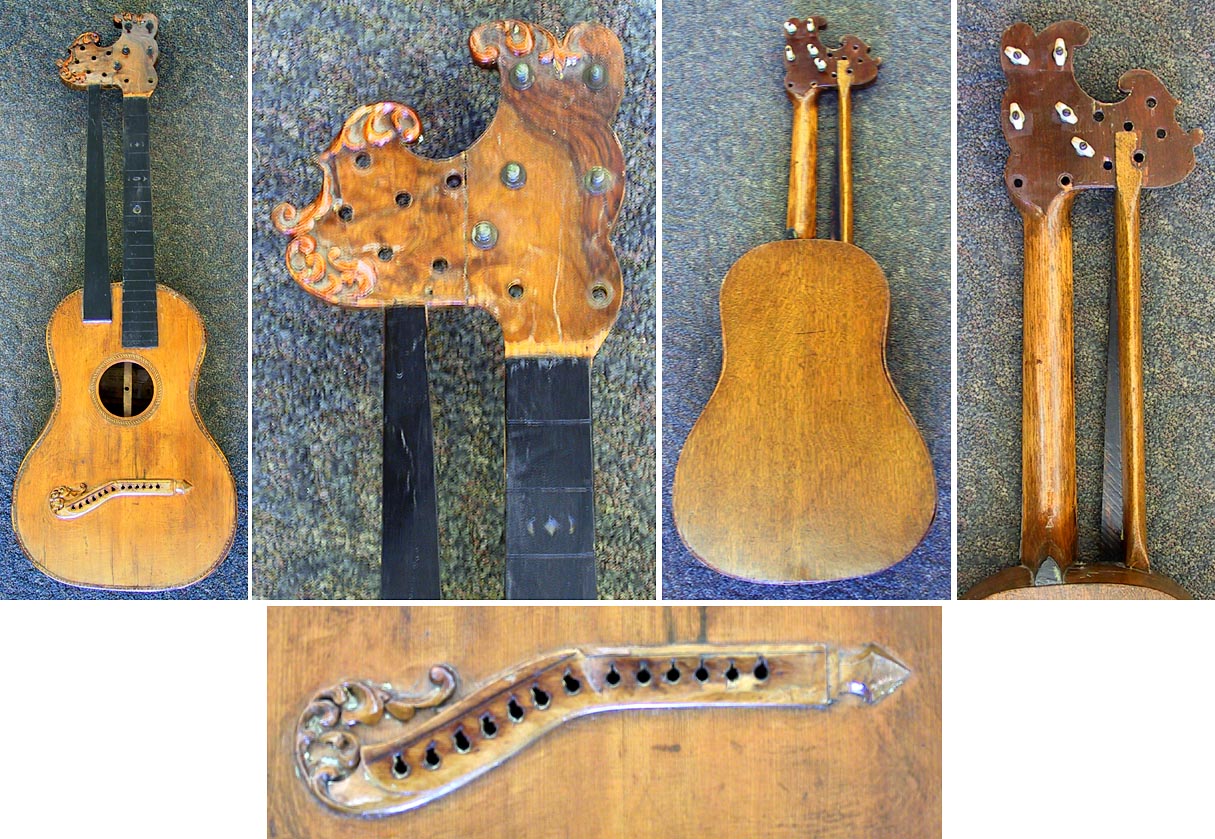

Unknown, Naples Unknown Unknown (Italian?)

     Swedish, Danish

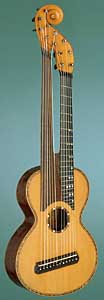

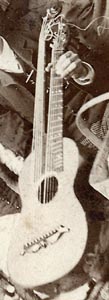

Otto F. Selling, c.1850-1875 Otto F. Selling, c.1850-1875 Signed C.H. Klingberg, 1886"
Very likely a repairman's label, and this is a Selling
Selling, or copy? Anders Thomsen, c.1964, Copenhagen, Denmark

     French

Anfossi, France, 1923
Patent # 552,532

     Modern

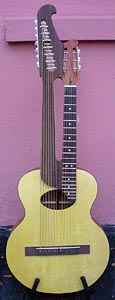

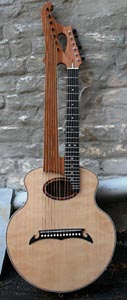

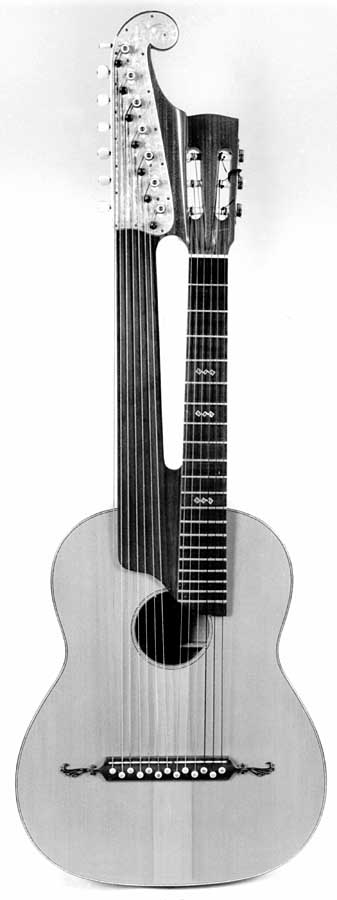

Benoît Meulle-Stef, Belgium, 2006 Benoît Meulle-Stef, Belgium, 2009
