Organology

"Harp" forms of Related Stringed Instruments
by Gregg Miner

See bottom of page for image copyright information

"True" Harp forms

                Mandolins

Anon
theorboed mandolone
Form 1c
anon, Italian, 1900-1910 Knutsen
harp mandolin, c.1910
Form 3a
Knutsen
harp mandolin, c.1914-1921
Form 3a
Drawing made by a Jenkins, Kansas City employee (Jenkins made or distributed Harwood harp guitars)


Alternate view 2

Alternate views 3
A fascinating real harp mandolin by a later unknown maker appeared in the 1969 cult film Angel, Angel Down We Go (now called Cult of the Damned). It features a carved top with F-holes, elevated pickguard, bound top and back, custom wide tailpiece, hollow arm with elaborate bass headstock and 5 sub-bass strings. Harmonie, 1919
Patent # 312,840

Rexjames
harp mandolin, c.2000
Form 3a

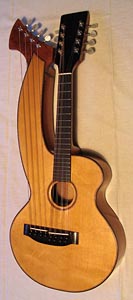

Stephen Sedgwick harp mandolin, 2005
Form 3a
Harry Eibert harp mandolin, Form 3a David Newton harp mandolin, Form 3a Tropical Moon Music

H. Hammond, Sioux City, Iowa

This amazing instrument is technically a double-neck-, not a harp-, mandolin, as it has a strange floating fretboard for the 3 doubled bass courses!  The owner, Lowell Levinger, agrees that they just cannot be fretted in practical use.  A fascinating combination of a mandolinetto and a Knutsen hollow arm instrument, with Hammond's own invention thrown in!


               Ukuleles

Altpeter, 1927
Form 1a/b
Makoto Tsuruta
Form 2a
Harry Eibert
Form 3a
Steve Wise
Form 3a
Koji Sugiura
Form 3a & 4
Wailua

David White taropatch Duane Heilman concert Harry Eibert tenor Michael Dunn tenor Pete Howlett tenor Ken Miller soprano

               Miscellaneous

Harp guitar-banjo, France c.1930
6 string neck, 4 sub-bass
Knutsen, harp Hawaiian guitar, c.1920s
2 sub-bass, 4 super-treble
Knutsen, harp Hawaiian guitar, c.1920s
2 sub-bass
Sullivan, Atlanta, GA, 1933,
Patent # 1,895,383
Viola beiroa, extra double-course of treble strings attached to bass side of body/neck junction

"Pseudo" Harp forms

            Mandolins, Hollow-arm, lyre form

Calace, Italy, 1890s Monzino Unknown P. Dabiero, Milan
TradeMarked: Octochordis Dabiero

Piccolo size
Unknown

Unknown Gibson, 1890s Unknown, appears Italian


Smaw, 1899,
Pat #D31,918
Turturro, 1904,
Pat #767,023
Lyralin, 1906, Pat #812,049 Vaughn, 1917,
Pat #D50,545
Bryan, 2002, Pat #US2002162442A1

            Mandolins, Hollow-arm, harp form

Gaskins, 1895,
Pat #552,116
Martin, stamped "Made by C.F. Martin & Co. for C.H. Gaskins & Co. Sept 2 '01." Livermore, 1896,
Pat #D26424
Porto, Sicily, c.1903 German?

Knutsen
harp mandolin,
c.1910
Knutsen
harp mandola, c.1910-1920
Knutsen
harp bandurria, c.1910-1920
McVey
harp mandolin, 1918, Pat #D52,539
Unmarked.
I believe this is a another version by McVey
Unknown
Who in the world made this "harp mandolin" with f-holes?!

Dyer (Larson-made)
harp mandolin, c.1910
Dyer (Larson-made)
harp mando-cello, c.1906?
Unknown
5-course harp mandola
(Larson-made, Knutsen design?), c.1900s

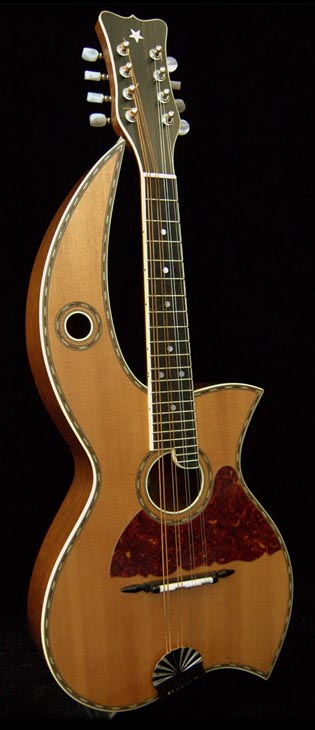

Jim Claridge, U.K. Dave Gregory, U.K.

Regal, c.1920? A patent-applied-for (Nov 20, 1908 Canadian Pook mandolin, with the arm on the "wrong" side!

Additional images


Monzino, Milan, c.1900s Luigi Galimberti
(for Monzino & Sons)
1924

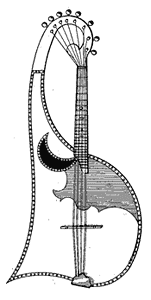

Calace, Naples, 1920 Longobardi, 1914
U.S. Pat #D45,566

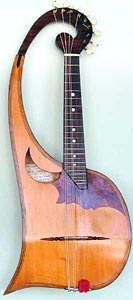

Federico Gardelli, Napoli, Via Roma 52
Clearly there is a connection between Gardelli and the U.S. Longobardi patent.
Mozzani, Italy, c.1910 Fratelli Masetti (Masetti Brothers), Modena, c.1920s

See also Masetti Harp Guitars

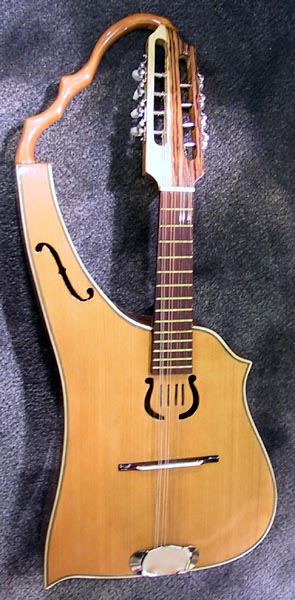

Unknown Musikalia, 1970s Bob Alexander, Delmundo Guitars

            Ukuleles, Hollow-arm, harp form

Knutsen
harp ukulele, c.1914-1921
Knutsen
harp taropatch,
c.1914-1920s
Michael Dunn
harp uke
Hoosier Maid, Geoff Davis Black Bear Ukuleles, Duane Heilman

Sympathetic Strings
Vincenzo Cipriani, Italy Fred Carlson
Guitarangi
Sympathetic strings
